18.5KW 25HP 100CFM Screw Air Compressor 3.2m3/min 1138*850*1035MM
Screw Air Compressor Product description:
1: Vertical installation, small resistance
2: Smoother operation, more energy-saving
3: Imported air filter, precision manufacturing
4: Fully enclosed box, dust-proof and low noise
5: Intelligent control, energy consumption management
6: High efficiency, low noise of centrifugal fan
7: The actual sound measurement of full load operation noise is 65 decibels
8: Can adapt to any environment with silent requirements
9: Fully enclosed positive pressure box
Improve suction efficiency, eliminate noise leakage, avoid lubricating oil leakage and contamination of the ground during maintenance, and prevent dust and impurities from entering.
Screw Air Compressor technical parameters:
| Model Specification | CAS18.5-0.8 |
| Displacement/Pressure (M³/Min/Mpa) | 18.5/0.8 |
| Power Kw/ HP | 18.5KW/25HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air-Cooling |
| Discharge Temp | ≤Ambint+15℃ |
| Noise Level Db(A) | 65 |
| Driven Mode | Direct Drive |
| Power V/Ph/Hz | 380V/50/60Hz |
| Starting Mode | power frequency |
| Dimension mm | 1138*850*1035mm |
| Out let Diameter inch | RP1-1/4 |
Screw Air Compressor Application:
Mold industry,lightand he avy industry,mining,hydropower,seaport,engineeringconstruction,oil and gasfield,railway,pharmaceutical industry,transportation,automobile repair,electronicindustry,electric power industry,machinery industry,petrochemical industry,food industry,printing industry
About Kapa:
screw air compressor manufacturers in china
main products include : variable frequency drive air compressor,industrial screw air compressor,laser cutting four-in-one air compressors, mobile integrated air compressors, oil-free air compressors, diesel mobile air compressors, large industrial air compressors, air compressor accessories, etc.
-
Business Type :
Manufacturer,Importer,Exporter,Seller
-
Main Market :
North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Middle East,Africa,Oceania,Worldwide
-
Brands :
Kapa,Kafeng Kalai, OEM
-
No. of Employees :
100~499
-
Annual Sales :
20million-50million
-
Year Established :
2001
-
Export p.c :
20% - 30%
-
-
why choose us ?
1. High quality control(ISO 9001-2000/ISO14001/ASME/Energy saving certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your actual needs)
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 10 -15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
|
|

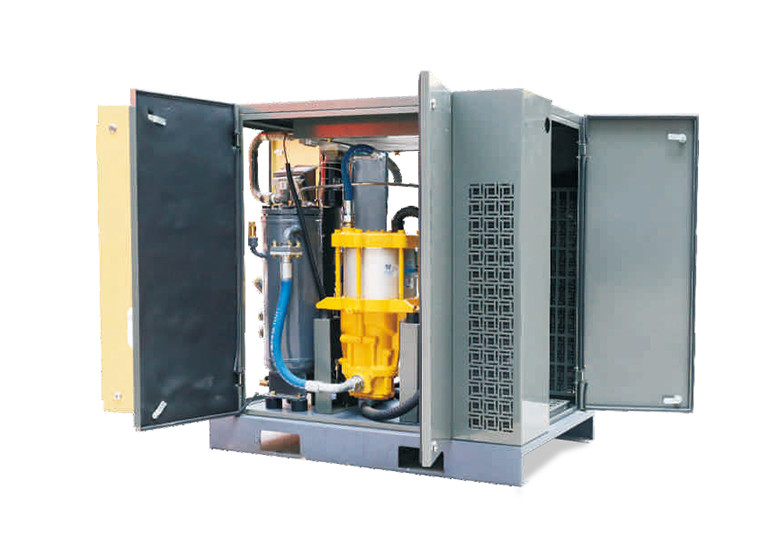

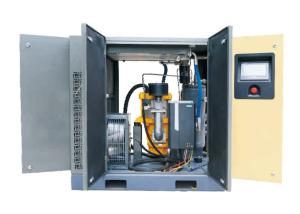

18.5KW 25HP 100CFM Screw Air Compressor 3.2m3/min 1138*850*1035MM Images
|
